Official Technical Datasheet

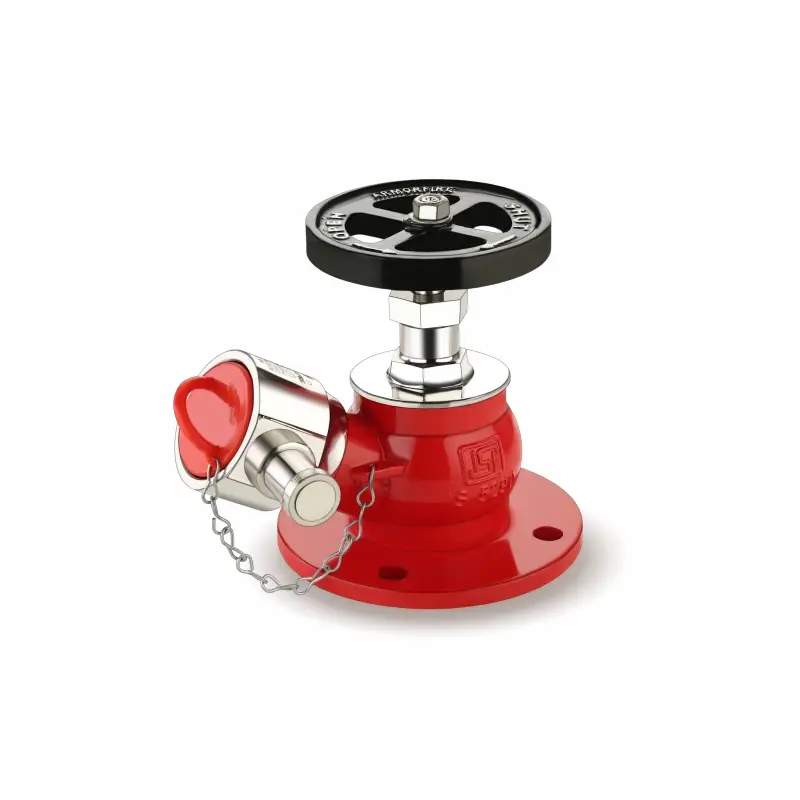

SINGLE HYDRANT VALVE

FIRE HYDRANT ACCESORIES

SCROLL DOWN TO REVEAL SPECIFICATIONS CARD

Official Technical Datasheet Specifications

ISO 9001:2015 CERTIFIED

SIZE OF LANDING VALVE	63mm
INLET (TYPE-A)	3" NB Flanged for Single Outlet
OUTLET	Female Instantaneous
MATERIAL	Stainless Steel
CONFORMING SPECIFICATION	IS : 5290
HYDROSTATIC TEST (BODY TEST)	Tested at 23 kgf/cm² for 2 ½ minute.
WATER TIGHTNESS (SEAT TEST)	Tested at 14 kgf/cm²
FLOW TEST	(TYPE-A) 900 LPM discharge at 7 kgf/cm²
DOCUMENTATION	Test & Guarantee Certificate
HAND WHEEL	Grey Cast Iron.
WARRANTY	12 Months from the date of supply.
WEIGHT	8.5kg Approx
