Our Products

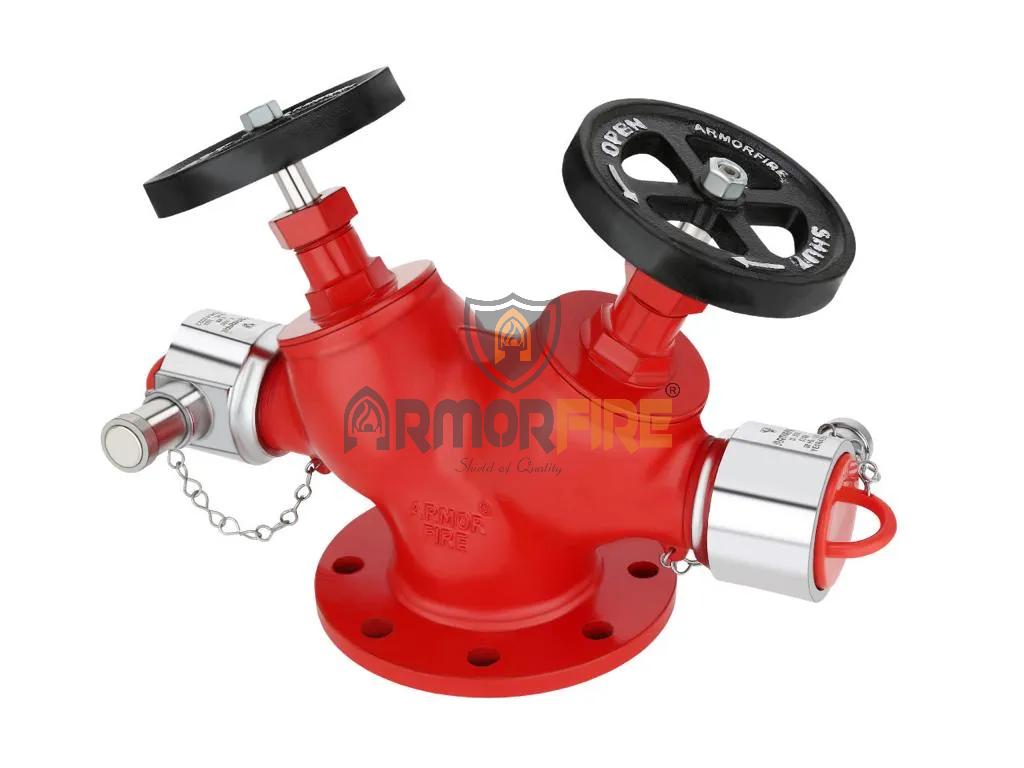

S.S. HYDRANT VALVE TYPE-B
| TECHNICAL SPECIFICATION | |
| Size Of Landing Valve | 63mm |
| Inlet (Type-b) | 4" Nb Flanged For Double Outlet |
| Outlet | Female Instantaneous. |
| Material | Stainless Steel |
| Conforming Specification | Is.5290. |
| PERFORMANCE TEST | |
| Hydrostatic test (Body Test) | Tested at 23 kgf/cm² for 2 minutes. |
| Water Tightness (Seat Test) | Tested at 14 kgf/cm² |
| Flow Test | (TYPE-B) 1800 LPM discharge at 7 kgf/cm² |
| Documentation | Test & Guarantee Certificate |
| HAND WHEEL | Grey Cast Iron. |
| WARRANTY | 12 Months from the date of supply. |
| Weight | 17.1kg Approx |
