Our Products

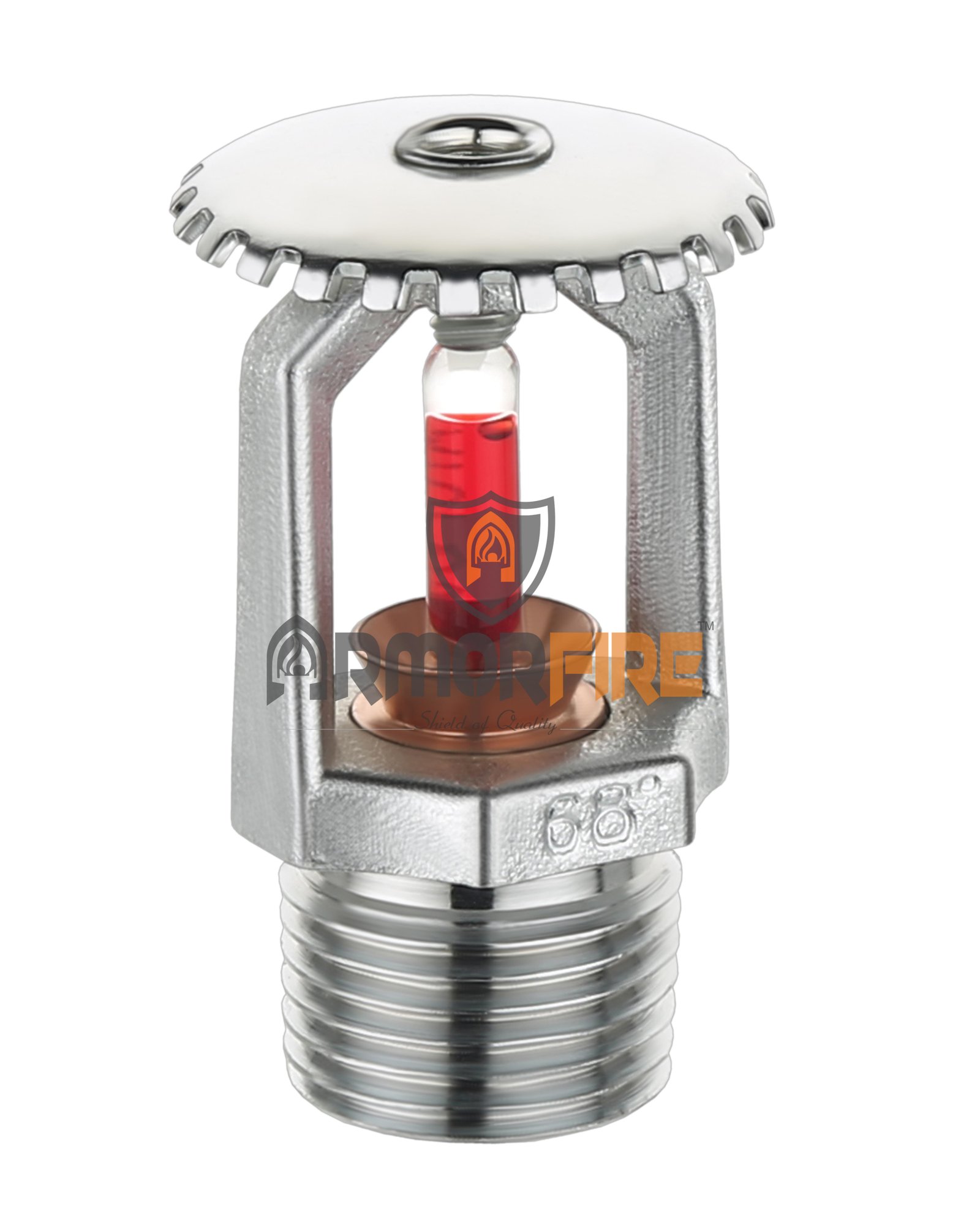

UPRIGHT
| Physical Characteristics | |
| Frame | Bronze |
| Button | Brass/Copper |
| Bulb | Glass |
| Compression Screw | Bronze |
| Deflector | Copper |
| Sealing Assembly | Nickel Alloy w/Teflon or NBR O-ring |
| Maximum Working Pressure | 175 psi (12.1 bar) |
| K Factor | k=5.6 (80.6), k=8.0 (115.2) |
| Thread Size | 1/2 R, 3/4" R, 1/2" NPT, 3/4" NPT |
| Temperature | 135°F/57°C, 155°F/68°C, 175°F/79°C, 200°F/93°C, 286°F/141°C, 360°F/182°C |
| Sprinkler Finish | Natural Brass, Chrome plated, Pure White, Signal White |
| Bulb Size | 3mm, 5mm |
